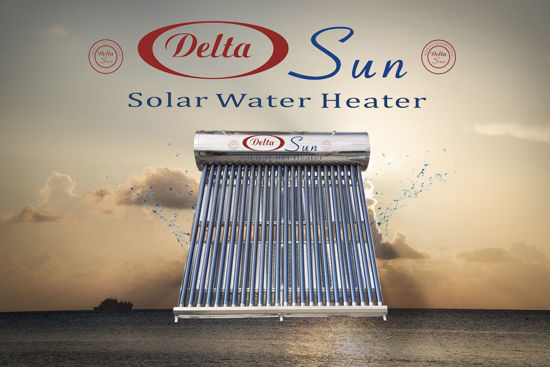

Home Solar Water Heater Stainless Steel 20 Tubes Capacity 250 L

Stainless Steel 20 Tubes Capacity 250 L



( reviews )

Rs 66000.00

20 Tubes Tank Capacity 220 L Tank + Tube Capacity 250 L

Quantity:
Add to cart
  • Availability:
Description
  • Tube length: 1800 mm
  • Outer tube diameter: 58 mm
  • Inner tube diameter: 47 mm
  • Glass thickness: 1.6 mm
  • Thermal expansion: 33X10-60•C
  • Absorptive : ≥95%
  • Coating: AL-NA-L
  • Inner Tank: SUS304-2Bwith 0.8 mm thickness Stainless
  • Outer Tank: Steel with 0.6 mm thickness Stainless
  • Frame: Steel with 1.5 mm thickness
  • Insulation: 50 mm of high density polyurethane foam
Specification
  • Tube length: 1800 mm
  • Outer tube diameter: 58 mm
  • Inner tube diameter: 47 mm
  • Glass thickness: 1.6 mm
  • Thermal expansion: 33X10-60•C
  • Absorptive : ≥95%
  • Coating: AL-NA-L
  • Inner Tank: SUS304-2Bwith 0.8 mm thickness Stainless
  • Outer Tank: Steel with 0.6 mm thickness Stainless
  • Frame: Steel with 1.5 mm thickness
  • Insulation: 50 mm of high density polyurethane foam
